The Incline Platform Lift Makes Your Home Accessible Without Major Disruption

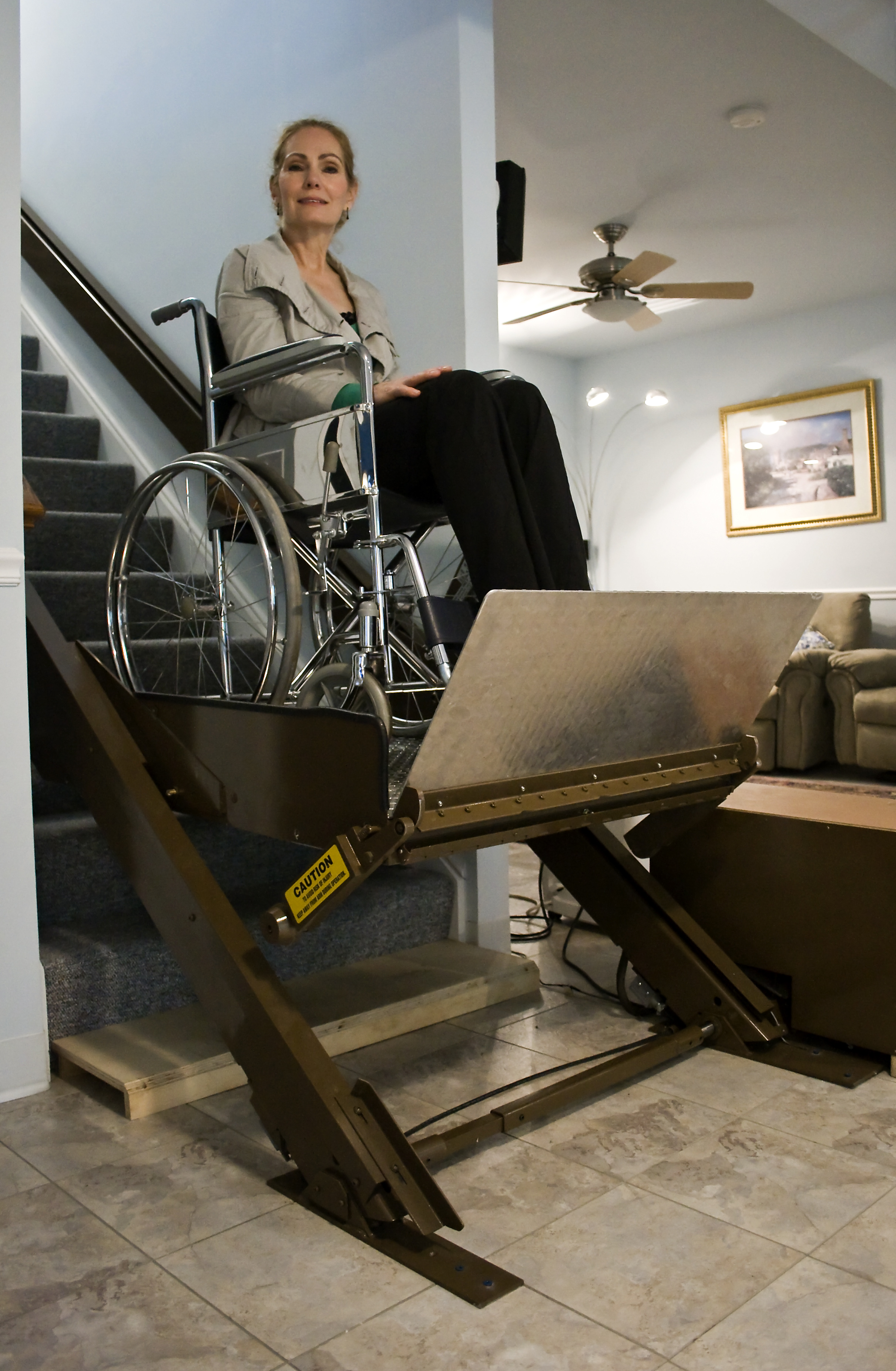

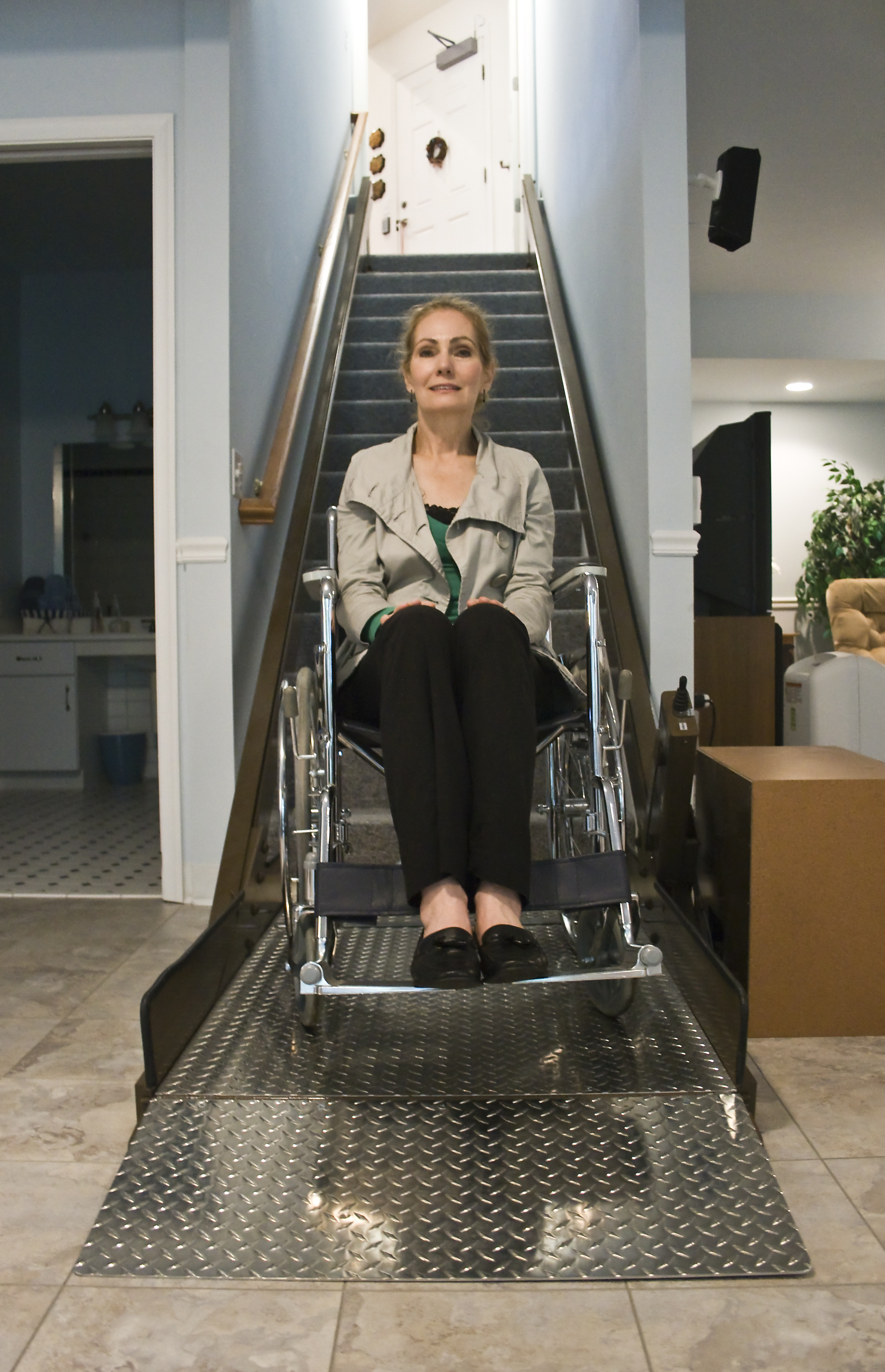

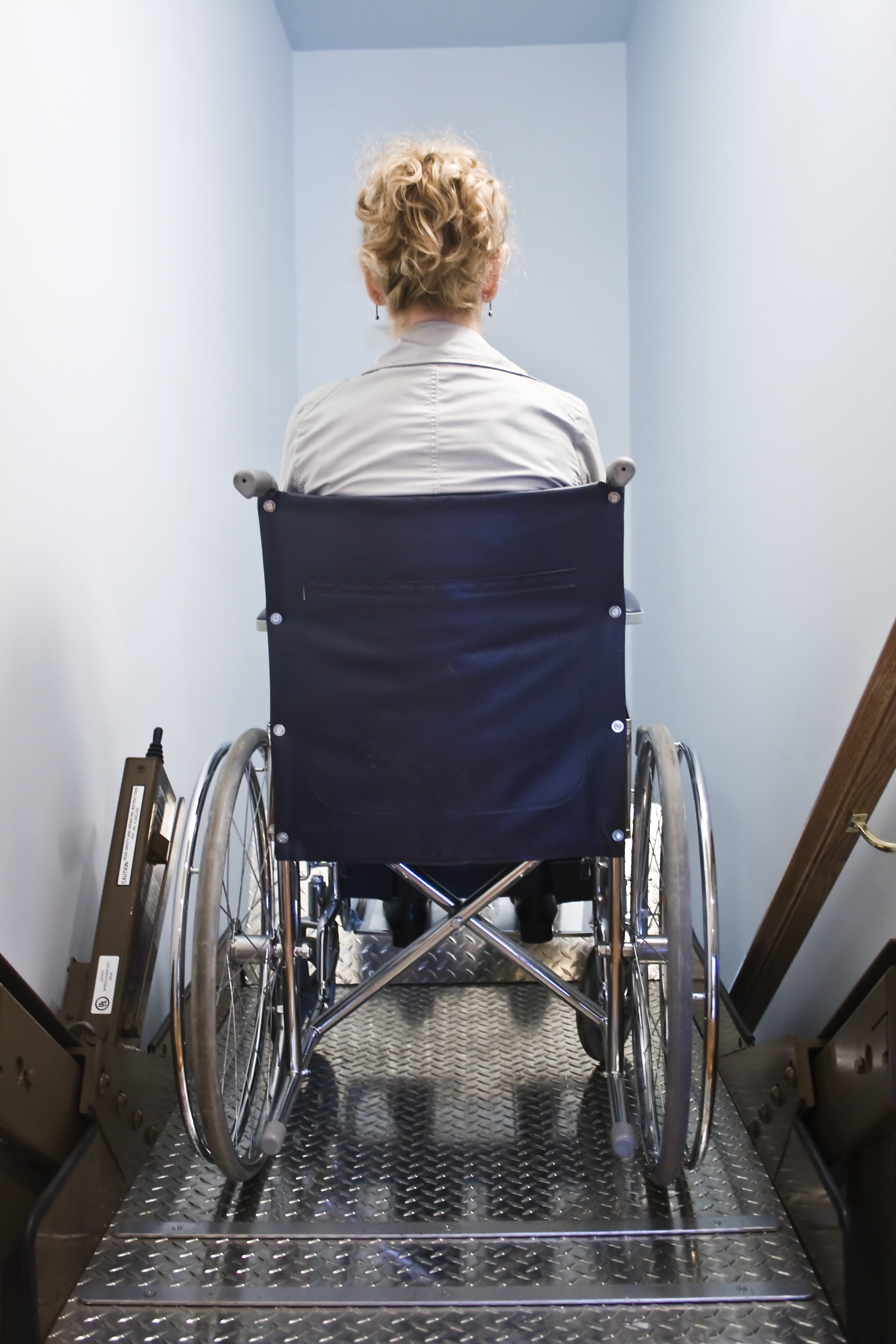

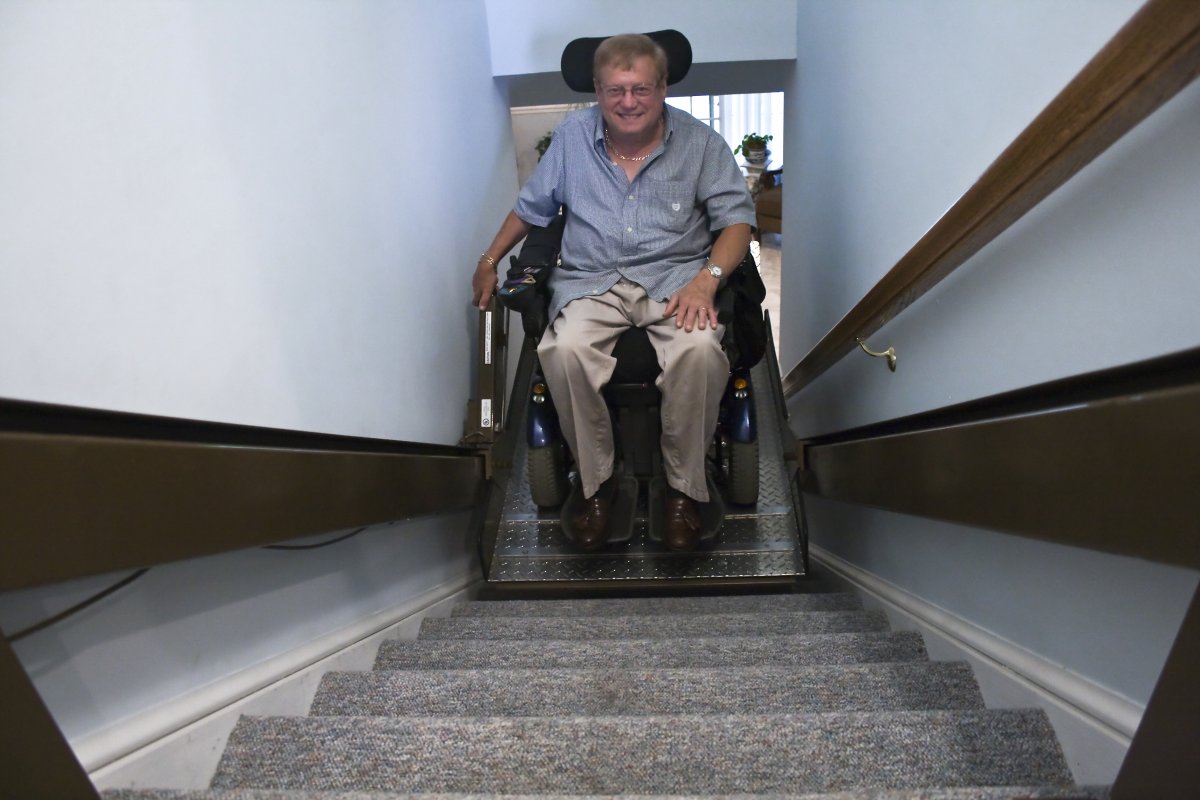

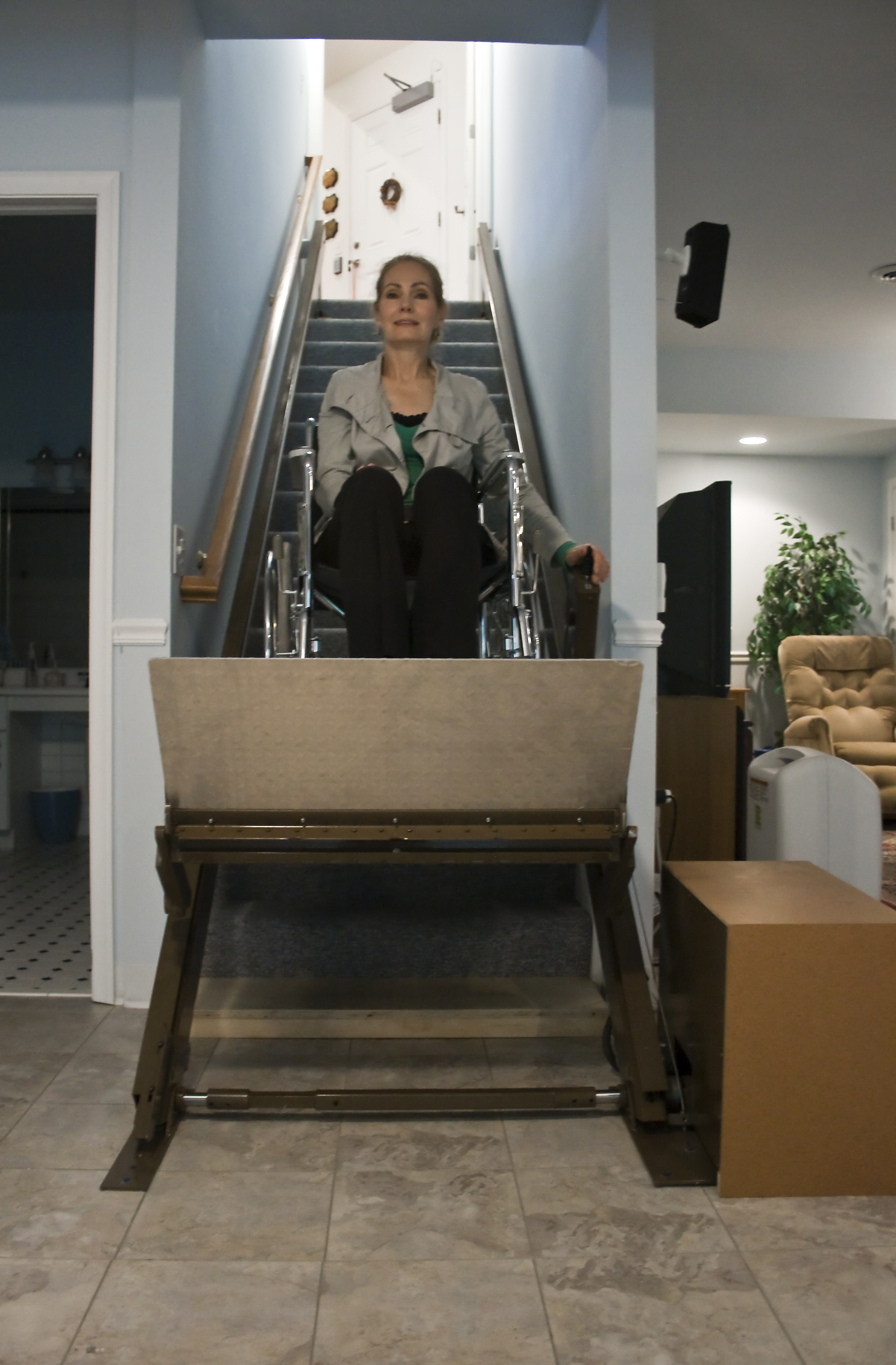

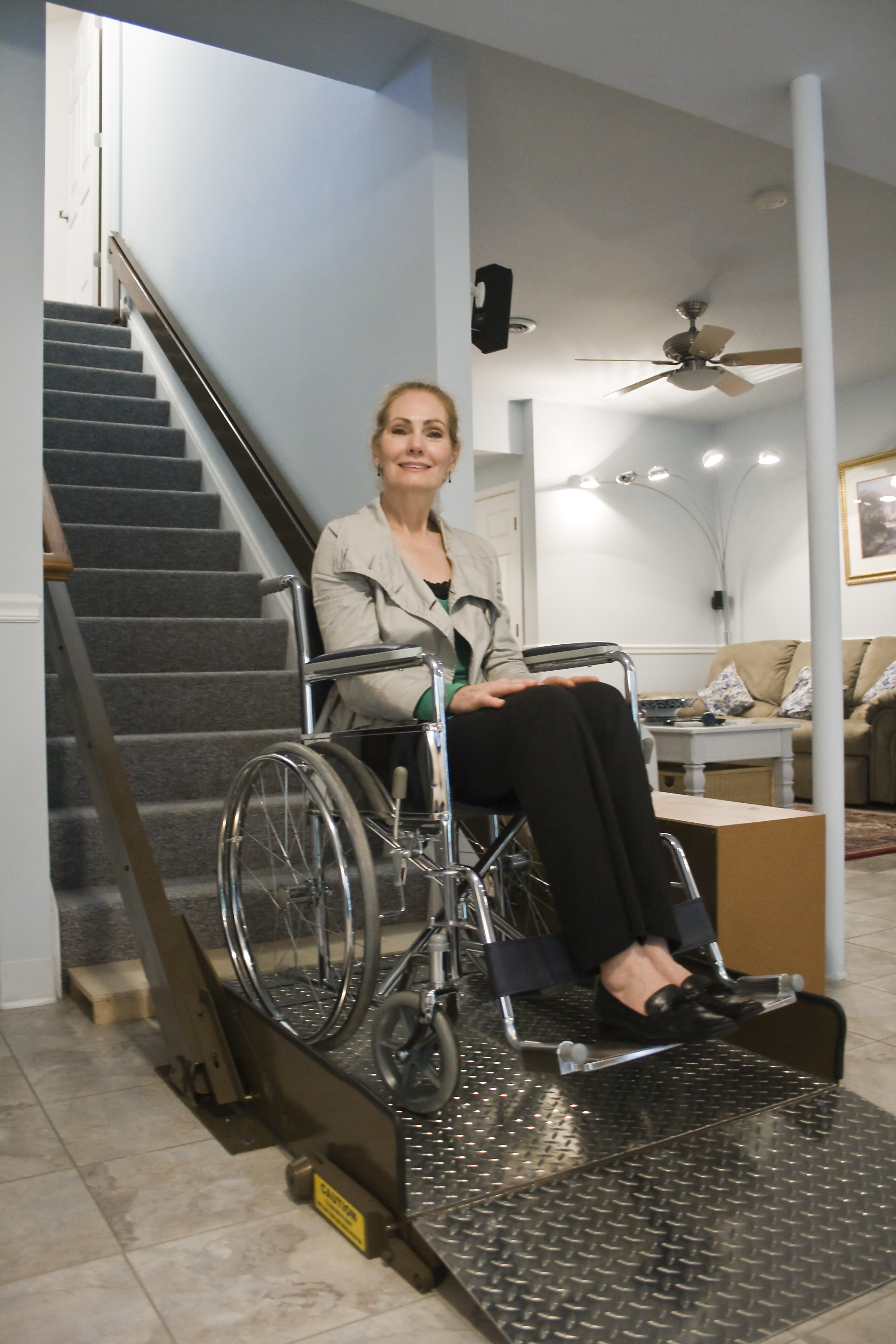

The Butler Mobility Inclined Platform Wheelchair Lift (IPL) is the perfect solution for a home with stairs where someone cannot transfer to a wheelchair lift or needs to have a wheel chair on both levels of their home.

As well as ADA-compliance, our wheelchair lift models meet or exceed all National Safety Code (ANSI/ASME code) requirements. Our wheelchair lifts are V.A. approved and have UL® and CSA certified components.

Standard lifting capacity is 500 lbs.(227 kg.) The optional lifting capacity is 750 lbs (350 kg).

In the event of a power failure, the standard battery backup will bring the platform up and down as many as 12-15 times, depending on the age of the battery, the height and the load, so the user is never left stranded

Butler Mobility IPL Incline Platform Lift

Safety Features

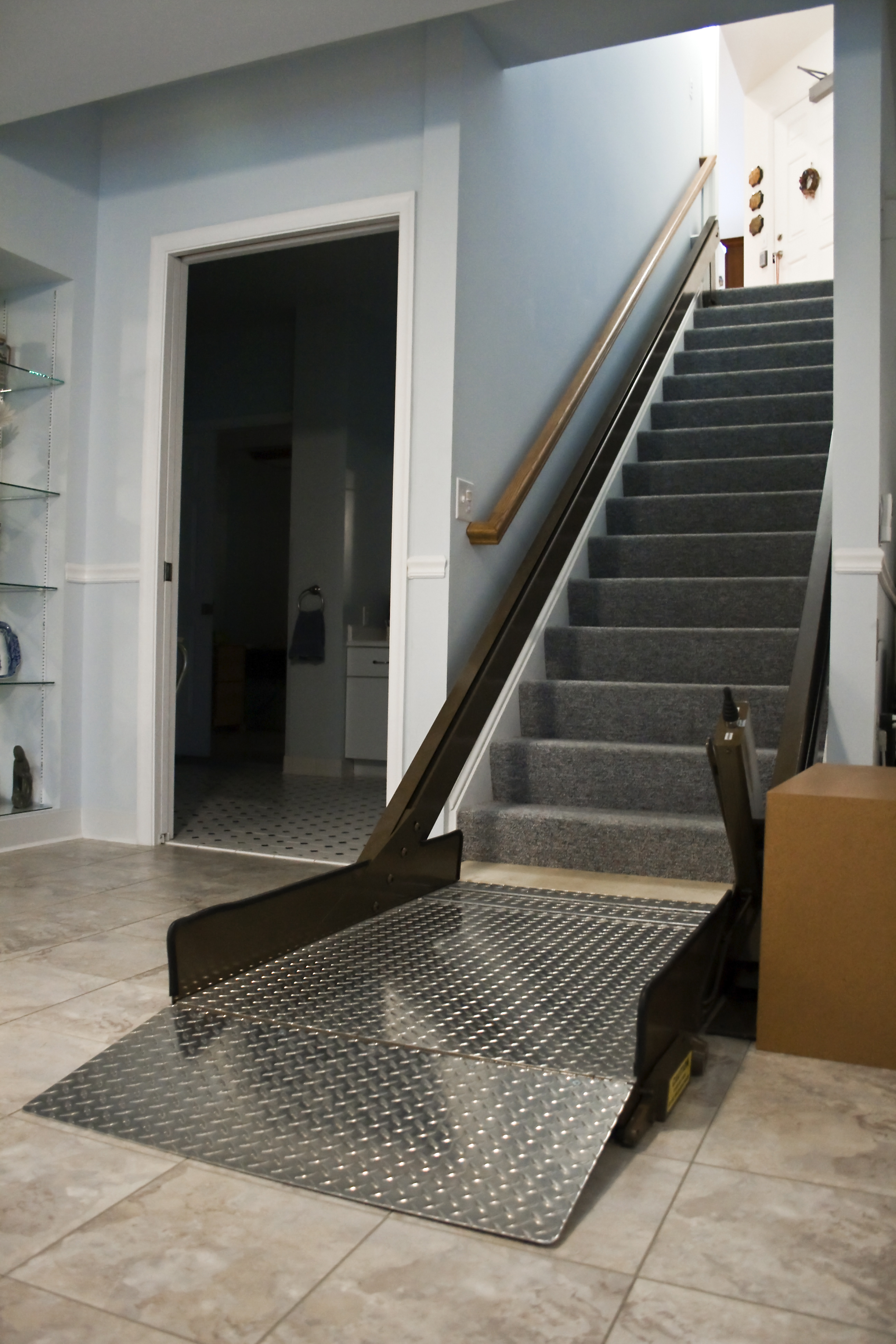

Our Inclined Platform Wheelchair Lifts can be equipped with an automatically folding end ramp and guard that locks firmly in place during operation.

Battery backup is standard.

•Each wheel chair lift has an emergency stop button standard.

•Optional key-operated controls provide additional safety and allow for parental control.

•Slack/broken chain safety

•Redundant platform safeties

•Platform safety apron

•Over-speed governor

•Upper and lower limit switches

•Over-travel safety switch

•Safety clutch

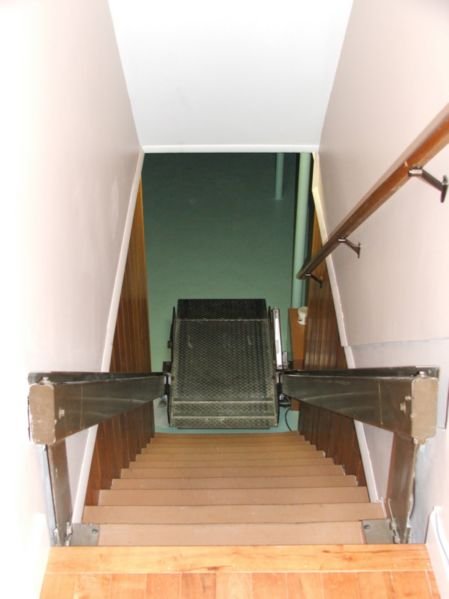

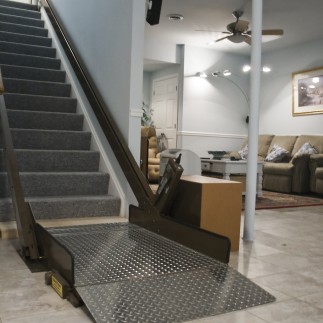

The two-rail design means the installation is simple and requires minimal changes to
the stairway. There is no need to modify the walls, the rails mount on the landings.


All Inclined Platform Wheelchair Lifts have three directional switches, all within easy reach of the user. One on the platform, another at the upper landing and another at the bottom landing. Wall mounted controls are available at a small additional cost. All switches are “momentary” (constant pressure) to meet safety code requirements.

Each wheel chair lift has an emergency stop button standard.

Comfort and Convenience

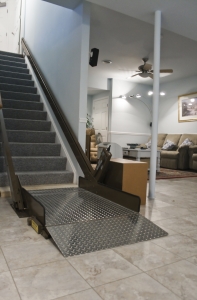

Each rail on our Inclined Platform Wheelchair Lifts takes up just four inches of stair width when the unit is not in use, ensuring the safety and convenience of other family members and users.

The Butler Inclined Platform Wheelchair Lift is also designed with appearance and functionality in mind. All the working mechanisms are concealed to offer a seamless, attractive appearance and optimum safety in homes and public buildings.

Color options

Butler Wheelchair Lift models are offered in five deluxe colors:
Autumn Brown – a deep rich dark brown
Weathered Chestnut – a beautiful silky medium brown
Sierra Foothills – a classic blend of creamy brown with a muted gray/green tint
Manor Stone Gray – a striking gray with brown undertones
Coastal Beige – a deep rich beige

Installation and service

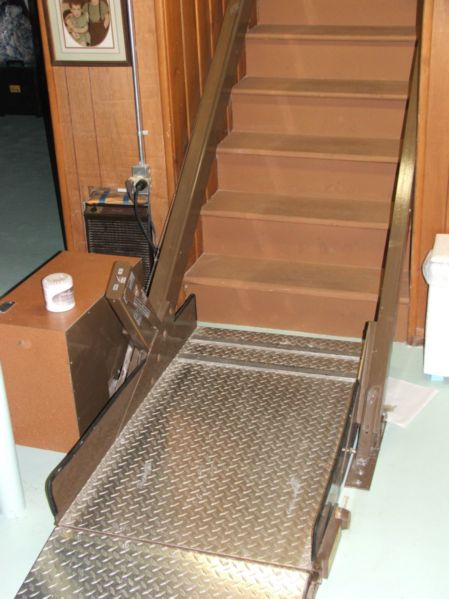

Butler wheel chair lifts are designed for installation that couldn’t be easier or less invasive. The rails attach at the top and bottom of the stairs with no modifications needed to walls. The power unit can be located almost anywhere at the bottom of the stairs including through an adjoining wall. Our Inclined Platform Wheelchair Lift uses standard residential or commercial 110 volt power.

We back our inclined wheel chair lift products with a five-year limited warranty
